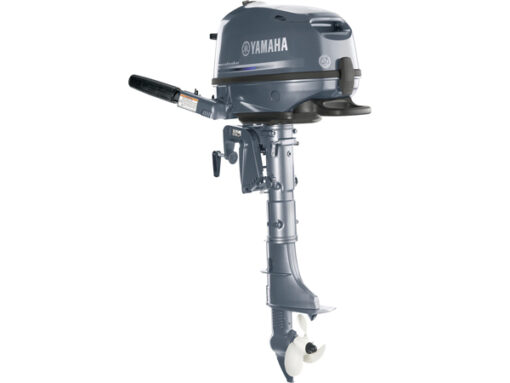

2020 Yamaha 6 HP F6SMHA Outboard Motor Year 2020 Manufacturer Yamaha Marine Model Name F6SMHA Trim Name Base Generic Type (Primary) Portable Engine Type 1 cyl Engine Power 6 hp at 5000 rpm Starter System: Manual Displacement 139 cc Bore 2.44 in (62 mm) Stroke 1.81 in (46 mm) Compression Ratio 8.9:1 Throttle Full RPM Range: 4500 ~ 5500 Steering Angle (maximum): 90° from center, either direction Exhaust Above Propeller Ignition CDI Oil Type Recommended: Yamalube® 4M Lubrication Wet Sump Cooling Recommended: Thermostatic Control Gear Ratio (Primary) 2.08:1 Gear Shifter Forward, Neutral, Reverse Spark Plug CR6HSB Alternator Output, Maximum 6 Amp | at W.O.T.: 6 Amp Fuel System Induction: Carb | Ethanol Blend Limit: 10% Maximum Fuel Type Recommended: Octane 87 Dimensions Degree of Tilt: 69° | Degree of Trim: -4° through 16° Length Shaft: 15″ – 20″ Oil capacity 0.6 L Dry Weight 15″ shaft: 59 lbs (27 kg) | 20″ shaft: 61 lbs (28 kg) Features Intake: 2 | C.A.R.B. Rating: 3-Star Warranty Limited 3-year Pleasure, 3-year Government, 1-Year Commercial
